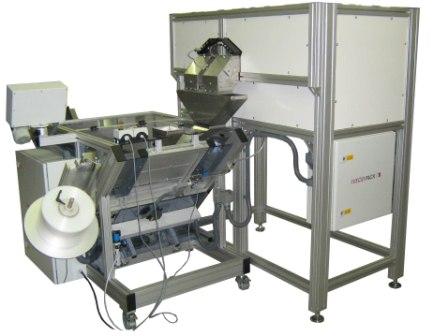

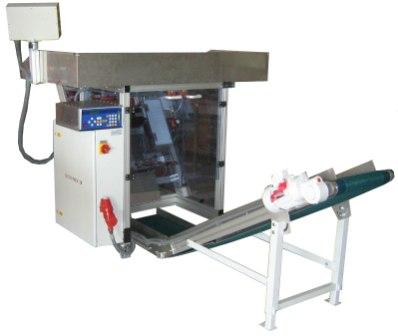

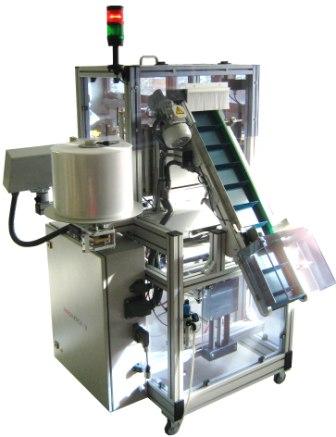

DSB 250/400 ST
The universal poly-tube bag packaging machine
The universal, compact packaging machine for manual and automatic operation. The combination of manual and automatic in-feed significantly increases the performance and flexiblity. It goes without saying that interfaces for the external management of the machine and marking data as well as a host-connection are already in place.
System Features
- Polyethylene semi-tubular film
- Versatile structure-in profile technology
- Filling-pipe quick-change system
- Easy to maintain
Technical details
- Control: Siemens PLC S7-300
- Capacity: up to 35 bags/min
- Bag-width: 60 to 250/400mm
- Bag-length: infinitely adjustable
- Bag-height: 80 / 140 / 200 mm
- film-strength: 40 bis 150 µm
- Electrical connection: 230 / 400 V, 50 Hz
- Compressed air: 150 l/min, 6 bar
- Measurements: 1100 x 1400 x 1100 mm (LxWxH)
- Weight: approx. 160 kg
Standard
Control
- Siemens PLC S7-300
- Control the number of individual bags, multi-chamber bags and batches
- Day counter and counts the entire quantity
- Data interfaces and preparation of options
- Malfunction message in plain language
- Controlled film unwinding
- Bag-length measurement
- Film-end warning devic
Bags
- Bag-chains and multi-chamber bags
- Bag separation/perforation with a knife
- Consistently high weld seam quality thanks to electronic surveillance
Film
- Neutral
- Printed
- anti-corrosive or anti-static film
- Special film on request
Options
Control
- PC control with data management
- Print-mark control for using pre-printed film
- Malfunction message with visual and/or audible signal
Bags
- Poly-tube bag made from flat film
- Eurohole
- bag ear-off perforation along/across
- Oil or water injection
- Product compressor
Conveyance
- Manual workplace with/without dividers
- Manual workplace with built-in table-top scales
- Collection and cartridge belts
- Hopper for stockpiling products
- Oscillating conveyors
- Rotating conveyors
- Weighing and counting devices
Bag marking
- Label dispenser
- Ink stamp
- Ink-jet printer
- Thermal transfer printer
Bag transport
- Belts of different performances
- Controlled box-filling
- Bag rentention device
- Checkweigher
